Miniature force transducer 50N 100N 200N 500N tension and compression sensor
Miniature size Inline force sensor FLN is made of stainless steel based on strain gauge technology with mV/V output,in-line load cell offers 50N / 100N / 200N / 500N / 1kN / 2kN / 3kN / 5kN eight measuring ranges to choose from. M8/M4 threaded rods located on both end can be used to install attachments,such as eye bolt,bolt adapter,etc.,to fit requirement of different applications.In-line force sensor FLN can be used for both tension and compression force measurement,compact size makes it applicable for force measurement applications where mounting space is limited.
Dimensions(Unit in "mm")
| Ordering code | Measurement Range | Force direction |
| FLN-5kg | 0-50N / 0-5kgf | Tension/compression |
| FLN-10kg | 0-100N / 0-10kgf |
| FLN-20kg | 0-200N / 0-20kgf |
| FLN-50kg | 0-500N / 0-50kgf |
| FLN-100kg | 0-1kN / 0-100kgf |
| FLN-200kg | 0-2kN / 0-200kgf |
| FLN-300kg | 0-3kN / 0-300kgf |
| FLN-500kg | 0-5kN / 0-500kgf |
Specifications
| Capacity | 50N / 100N / 200N / 500N / 1kN / 2kN / 3kN / 5KN
5kg / 10kg / 20kg / 50kg / 100kg / 200kg / 300kg / 500kg
10lb / 20lb / 45lb / 110lb / 220lbs / 450lbf / 660lb / 1.1klb |
| Rated output | 1.0mV/V |
| Excitation | 3-10 V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±1% R.O. |
| Hysteresis | ±1% R.O. |
| Nonrepeatability | ±0.5% R.O. |
| Creep(5min) | ±0.2% R.O. |
| Safe overload | 120% F.S. |
| Ultimate overload | 150% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.05% R.O./oC |
| Temperature shift span | ±0.05% R.O./oC |
| Input resistance | 1000±100 ohms |
| Output resistance | 1000±100 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP66 |
| Material of element | Stainless steel |
| Cable | Ø2*3000mm 4-core shielded |
| Wiring code | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
Instruction of load cell output:
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Miniature Traction Compression Force Sensor FLN is around 1.0mV/V.
Power supply of Miniature Push Pull Load Cell FLN is normally within 3-12V.
Load / Capacity is within 0-1.
So the output range of Miniature Inline Load Cell FLN is normally within -12mV...+12mV for tension/compression force measurement.
Example: Miniature Push Pull Load Cell FLN-50kg with 1.0mV/V sensitivity powered by 5V DC,the output range is -5mV...+5mV.
A signal conditioner can be used with the load cell to deliver -5~5V, 0-10V or 4-20mA output.
Example one: Miniature Tension Compression Sensor FLN-20kg working with -10-10V amplifier, the Force-Voltage relationship will be 0-20kg compression load VS 0-10V output, 0-20kg tension load VS 0-(-10V) output, which is linear regardless of the error, 1V output corresponds to 2kg compression load, -2V output corresponds to 4kg tension load, and so on.
Example two: Miniature Traction And Compression Load Cell FLN-10kg working with 4-12-20mA amplifier, the Force-Current relationship will be 0-10kg compression load VS 12-20mA output, 0-10kg tension load VS 12-4mA output, which is linear regardless of the error, 12.8mA output corresponds to 1kg compression load, 8mA output corresponds to 5kg tension load, and so on.
Click here to download datasheet
|
|

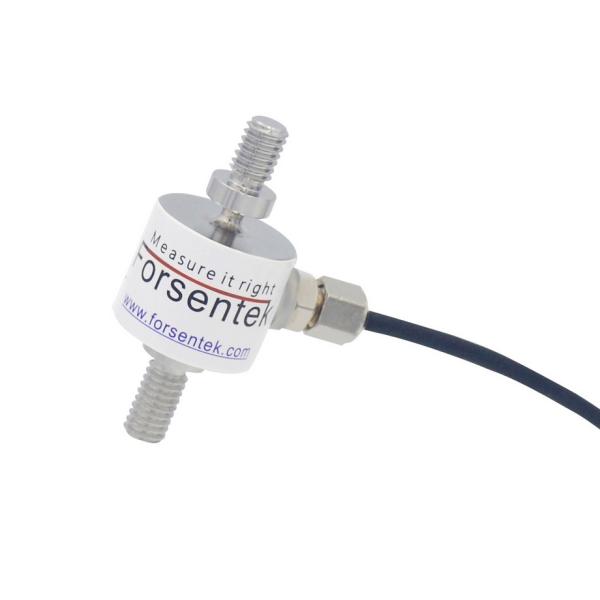

Miniature Force Transducer 50N 100N 200N 500N Tension and Compression Sensor Images
|
