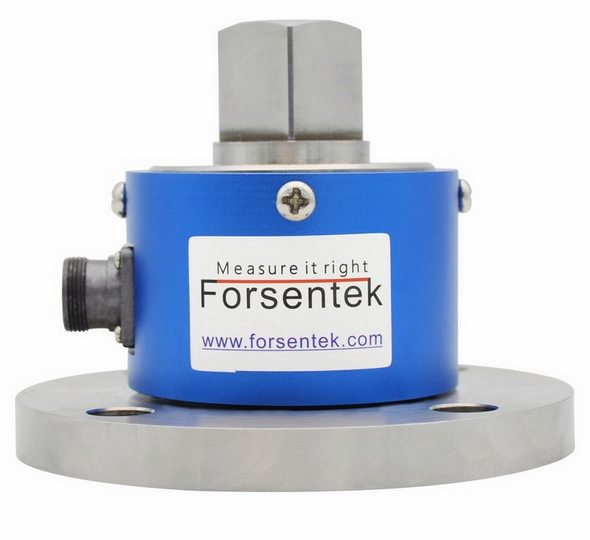

Square drive to flange reaction torque sensor torque transducer

Place of Origin : China

Brand Name : Forsentek

Model Number : FT04

MOQ : 1pc

Packaging Details : 1pc/box

Delivery Time : 3~20 working days

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 2000pcs/month

Usage : Measure torque

Theory : Strain gauge torque sensor

Output : Analog Sensor

Type : Reaction torque sensor

Capacity : 20NM 30NM 50NM 100NM 200NM 300NM 500NM

Contact Now

Square to flange reaction torque sensor torque transducer

Square drive to flange reaction torque sensor torque transducer

Square drive to flange reaction torque sensor torque transducer

Features

  • Alloy steel or stainless steel construction
  • Square drive to flange stype,easy to install
  • Strain gauge technology,high accuracy
  • Non-rotating torque measurement

​Square drive to flange reaction torque sensor torque transducer

Dimensions

Square drive to flange reaction torque sensor torque transducer

Square drive to flange reaction torque sensor torque transducer

Specifications

Capacity 500NM 300NM 200NM 100NM 500NM 20NM
Rated output 1.0-2.0mV/V
Excitation 5-15V
Zero balance ±2% R.O.
Nonlinearity ±0.15% R.O.
Hysteresis ±0.15% R.O.
Nonrepeatability ±0.05% R.O.
Creep(30min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.01% R.O./oC
Temperature shift span ±0.01% R.O./oC
Input resistance 350±30 ohms
Output resistance 350±10 ohms
Insulation resistance >5000M ohms
Ingress protection IP60
Material of element Alloy steel/Stainless steel
Cable Ø5*3000mm
Wiring code Red--E+ Black--E- Green--S+ White--S-

Square Flange Style Reaction Torque Transducer
